AI as a Production Partner in Blender

This project began with a simple question:

How useful can AI be when integrated into a real Blender workflow?

I started with a sourced industrial robot arm model. The objective was not to build the model from scratch, but to explore how far AI could help take an existing asset through the stages that typically require significant manual effort: rigging, animation, look development, rendering, export, and web deployment.

Starting with an Existing Model

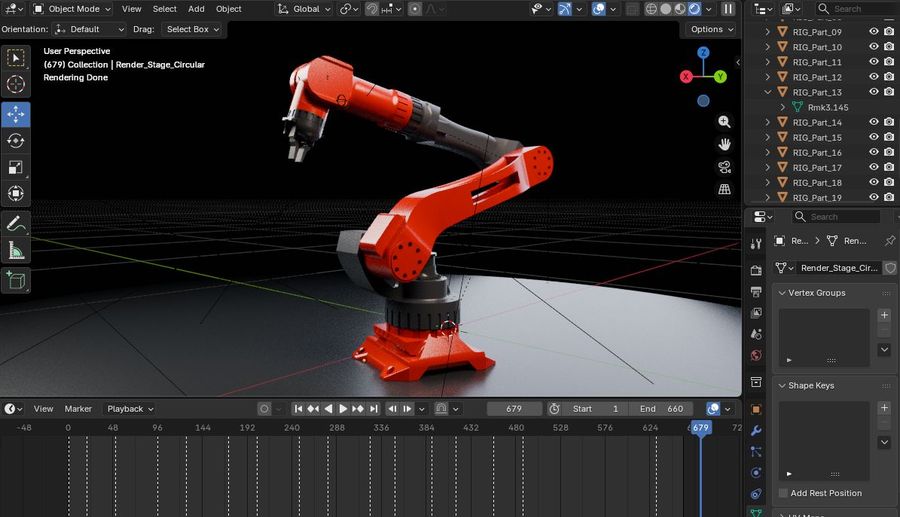

The first experiment was straightforward. I connected AI to Blender through MCP and asked it to inspect and work with the scene.

The project quickly became more complex.

The model needed to behave like an industrial robot, not a human arm. That distinction became the central technical challenge.

Reconstructing the Mechanical Logic

The robot consisted of rigid components, rotating discs, shafts, housings, sliding jaws, and motor assemblies. Several early motion tests were mechanically incorrect, so the rig had to be rebuilt around the actual behavior of the machine.

The process involved answering questions such as:

• Which parts should rotate together?
• Where is the true center of each joint?
• Which components are fixed housings?
• Which parts slide rather than rotate?
• Which downstream components should inherit a joint’s movement?
• Which axis controls each mechanism?

One wrist component, for example, needed to rotate around the center of its cylinder without bending. Another had to remain aligned with a shaft supported by a neighboring assembly. The gripper jaws needed to slide symmetrically while carrying their attached components.

AI helped inspect the scene, modify object hierarchies, generate test poses, and render checkpoints. However, the mechanical decisions came from comparing those results with reference images and the expected behavior of an industrial robot.

Using Renders as Debugging Tools

One of the most useful discoveries was that renders could function as mechanical debugging tools.

Rather than checking only whether an object moved, I evaluated whether the full assembly remained physically coherent:

• Were the joint centers aligned?
• Did components remain parallel to their housings?
• Did gaps appear during movement?
• Did the base drift?
• Did the gripper remain attached?
• Did each part rotate around the correct axis?

Animation became a form of mechanical testing.

The workflow followed a consistent cycle:

1. Describe the intended behavior.
2. Modify the rig.
3. Render a checkpoint.
4. Compare the result with the reference.
5. Identify the actual source of the error.
6. Correct the hierarchy, pivot, or rotation axis.
7. Test again.

This iterative process was more reliable than trying to solve the entire rig in a single pass.

From Mechanical Accuracy to Visual Presentation

Once the rig behaved more convincingly, I moved into materials and lighting.

The sourced asset was developed into an industrial product-style presentation using:

• Red-orange painted surfaces
• Dark graphite structural components
• Gunmetal mechanical parts
• Rubber-like dark materials
• Clean, low-noise surfaces
• Metallic reflections with controlled roughness
• A circular stage fading radially into black

The lighting evolved into a cinematic product setup with warm key lights, cool fills, warm rim lighting, overhead detail lights, and contact illumination around the base.

The goal was not simply to make the robot brighter. The lighting needed to reveal the mechanical detail while preserving contrast, depth, and a strong industrial character.

Developing the Animation and Camera Language

The animation expanded from individual joint tests into compound industrial poses.

I then rendered ten cinematic stills using a range of poses and camera angles, including:

• Hero three-quarter views
• Low-angle base shots
• Overhead mechanical compositions
• Side profiles
• Rear three-quarter views
• Tool and gripper close-ups
• Open-jaw poses
• Industrial grab and reach positions

The final animation section, covering frames 490 to 660, was also rendered as an H.264 video.

Taking the Asset to the Web

The experiment continued beyond Blender.

The robot was exported as a structured GLB/glTF asset containing:

• Rigid mechanical nodes
• Named parts and joints
• Joint metadata
• Baked animation
• A web-ready industrial motion sequence

I then built a Three.js WebGL viewer with animation playback, orbit controls, individual joint controls, and a unified control for opening and closing the gripper jaws.

A subtle issue appeared during this stage. The baked Blender animation worked correctly, but the JavaScript controls rotated several joints around the wrong axis.

The cause was a coordinate-system conversion. Blender uses a Z-up coordinate system, while the exported glTF structure represented the relevant rotation on the Y axis.

This bug demonstrated why end-to-end testing is essential. An exported animation can appear correct while its interactive controls still behave incorrectly.

What the Experiment Taught Me

The main lesson was that AI becomes most useful in 3D when it participates across the entire workflow, rather than being limited to image generation or object creation.

In this project, AI assisted with:

• Blender scene inspection
• Rigging modifications
• Mechanical diagnostics
• Animation setup
• Batch rendering
• Materials and lighting
• GLB export
• Three.js viewer development
• Regression testing

However, AI did not remove the need for visual judgment or mechanical reasoning.

The quality of the final result came from the interaction between human direction and AI-assisted execution. The human defined the intended behavior, evaluated the results, and made decisions that required visual and mechanical understanding. AI accelerated the implementation, inspection, testing, and iteration process.

The project began with a sourced model and a simple question:

What can AI actually help with inside a 3D workflow?

By the end, the answer extended far beyond modeling. AI helped connect the asset to rigging, animation, look development, rendering, export, and the web, while keeping the human in control of the decisions that required mechanical understanding and visual judgment.
